The arrival of Wi-Fi 7 routers marks a major leap in home networking technology. Faster wireless speeds, lower latency, and improved device handling promise a new level of connectivity for modern homes filled with smart devices, gaming consoles, and high-bandwidth applications.
One of the standout options in this emerging category is the Asus RT-BE96U. This powerful tri-band router is designed to deliver extremely fast wireless performance across the 2.4GHz, 5GHz, and 6GHz bands, while also offering high-speed wired connectivity with multi-gig Ethernet ports.
Check the price on Amazon here
However, premium performance comes at a cost. The RT-BE96U sits firmly in the high-end router segment, making it important to evaluate whether its capabilities justify the price.
In this Asus RT-BE96U review, we take a deep dive into the router’s design, performance, features, and real-world usability to help you decide if it’s the right upgrade for your network.
Design & Build Quality
The Asus RT-BE96U is anything but subtle. Its large size and aggressive styling immediately signal that this is a high-performance networking device rather than a basic home router.
Large and Functional Design
The router features a hexagonal chassis combined with eight external antennas. These antennas are adjustable but fixed in place, meaning they cannot be removed.
Key physical characteristics include:
- Large footprint designed for powerful internal components
- Eight adjustable antennas for enhanced signal coverage
- Ventilation system with dedicated heat management
- Rugged housing built for stability and cooling
Cooling is handled through a combination of strategically placed vents and an internal heatsink, ensuring that the router remains stable even under heavy traffic loads.
Physical Dimensions
The router measures roughly 8.6 x 13.7 x 13.7 inches, making it significantly larger than typical consumer routers. While this helps accommodate high-end hardware, it also means you’ll need plenty of desk or shelf space.
Despite the large size, the build feels solid and well-engineered, reinforcing its premium positioning.
Display / Indicators
Unlike some high-end routers that feature screens or RGB lighting, the RT-BE96U keeps things relatively simple.

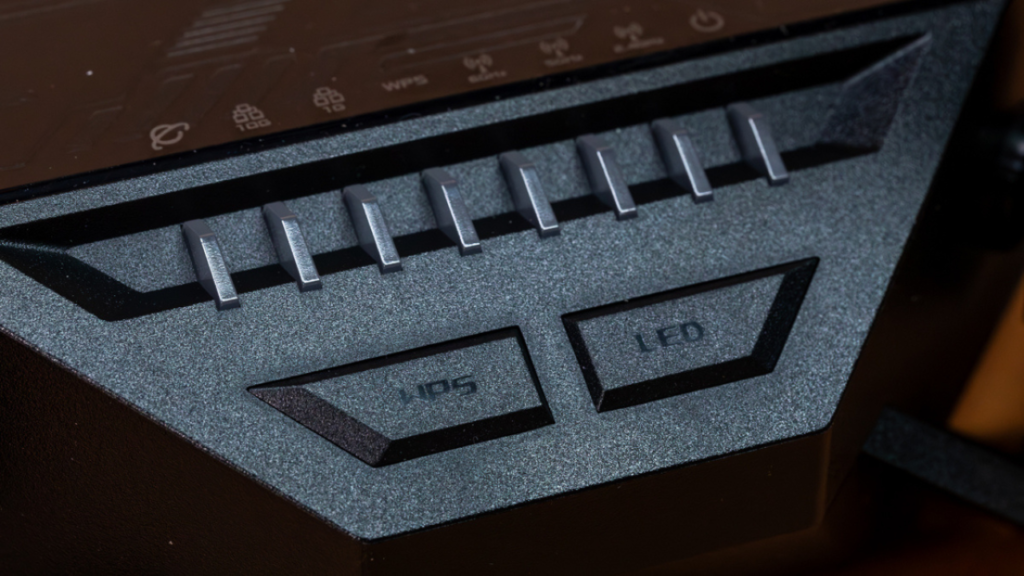

Across the front of the device, you’ll find LED indicators that provide quick information about:
- Power status
- WAN connectivity
- LAN activity
- Wireless bands
- WPS pairing
These indicators make it easy to confirm whether the network is functioning properly without accessing the management interface.
Performance & Hardware
The Asus RT-BE96U hardware specifications are where this router truly shines.
Core Hardware Specifications
- Wireless Standard: Wi-Fi 7 (802.11be)
- Total Throughput: BE19000
- Processor: Quad-core CPU running at 2.6GHz
- RAM: 2GB
- Flash Storage: 256MB
- Antennas: 8
- USB Ports: 2
- LAN Ports: 5
These specifications place the RT-BE96U firmly in the high-performance networking category.
Maximum Wireless Speeds
The router supports impressive theoretical speeds:
- 2.4GHz band: Up to 1,376 Mbps
- 5GHz band: Up to 5,764 Mbps
- 6GHz band: Up to 11,529 Mbps
Combined, these add up to nearly 19Gbps of total bandwidth capacity, making the router well suited for data-heavy environments.
Software / User Experience
Managing the Asus RT-BE96U router is simple thanks to two control options:
- A web-based management console
- The Asus Router mobile app
Asus Router Mobile App
The mobile app is designed for convenience and offers an intuitive interface for everyday management.
Key features available in the app include:
- Real-time traffic monitoring
- Device management
- Network status overview
- Bandwidth prioritization
- Security alerts
The app dashboard displays information such as:
- Connected devices
- CPU and RAM usage
- Network activity graphs
This makes it easy to monitor the health of your network at a glance.
Web Console for Advanced Control
For advanced users, the web console unlocks deeper configuration options including:
- LAN and WAN settings
- VPN configuration
- Firmware updates
- Advanced wireless configuration
Power users will appreciate the flexibility and customization available here.
Battery Life / Power Efficiency
Since the RT-BE96U is a plug-in home router, battery life is not relevant.
However, power efficiency is still important for devices that operate continuously.
The router’s design focuses on thermal efficiency and stable performance, using cooling vents and a heatsink to prevent overheating during sustained high-speed data transfers.
This ensures long-term reliability even in demanding network environments.
Key Features
The Asus RT-BE96U features showcase the advantages of next-generation Wi-Fi 7 technology.
Wi-Fi 7 Technology
The router supports several cutting-edge wireless innovations:
- 320MHz channel bandwidth for ultra-fast speeds
- 4096-QAM modulation for higher data density
- Multi-Link Operation (MLO) for improved reliability
- OFDMA for efficient device communication
- MU-MIMO for simultaneous data streaming
Together, these technologies help deliver faster speeds and lower latency compared to older Wi-Fi standards.
High-Speed Wired Connectivity
The router also excels in wired networking.

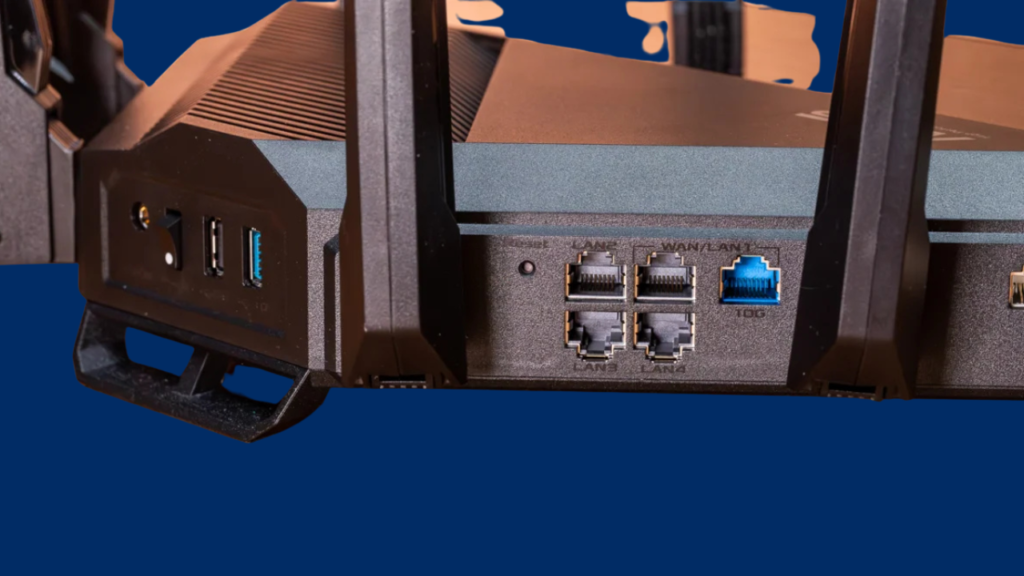

Available ports include:
- Two 10GbE ports
- Three Gigabit LAN ports
- One additional WAN/LAN port
This setup makes the router suitable for users with multi-gig internet connections or high-speed NAS systems.
Security and Parental Controls
Another standout feature is the built-in security suite.
Included features:
- Network protection tools
- Real-time threat monitoring
- Parental controls with age-based filtering
- Scheduled internet access
These tools help families maintain a safe and controlled online environment.
Real-World Performance
In real-world testing, the Asus RT-BE96U Wi-Fi 7 router delivers strong overall performance across all bands.
2.4GHz Performance
The 2.4GHz band produced solid speeds at both close and extended distances, making it ideal for:
- Smart home devices
- IoT gadgets
- Older wireless hardware
Signal coverage was strong throughout the testing environment.
5GHz Performance
The 5GHz band delivered excellent throughput, providing enough bandwidth for:
- Online gaming
- 4K streaming
- Large file downloads
Even at moderate distances, the router maintained impressive speeds.
6GHz Performance
The 6GHz band is where Wi-Fi 7 routers truly shine.
At close range, the RT-BE96U delivered extremely fast throughput, making it perfect for high-performance tasks such as:
- VR streaming
- Large file transfers
- Ultra-low latency gaming
However, like most routers using this band, signal range decreases more quickly as distance increases.
Pros and Cons
Pros
- Excellent wireless performance
- Full Wi-Fi 7 support
- Extremely fast 6GHz speeds
- Two 10GbE networking ports
- Powerful internal hardware
- Advanced security and parental controls
- Easy setup and management
Cons
- High price compared to standard routers
- Large physical footprint
- 6GHz signal range is limited at longer distances
Price & Value for Money
The Asus RT-BE96U price places it firmly in the premium router category.
With an MSRP around $699, this router is clearly aimed at enthusiasts and power users rather than casual buyers.
However, the price reflects the advanced hardware and next-generation connectivity offered by Wi-Fi 7 technology.
For users who want:
- Maximum wireless performance
- Multi-gig internet support
- Future-proof networking hardware
The RT-BE96U can represent strong long-term value.
Comparison with Competitors
The main competitor to the RT-BE96U is another high-end Wi-Fi 7 router: Asus ROG Rapture GT-BE98 Pro.
Asus RT-BE96U vs ROG GT-BE98 Pro
RT-BE96U
- Strong overall performance
- High-speed 10GbE connectivity
- Advanced security features
GT-BE98 Pro
- Even faster 6GHz performance
- More multi-gig ports
- Additional gaming-focused features
While the RT-BE96U performs extremely well, users who want the absolute fastest speeds and extra gaming features may prefer the higher-end model.
Who Should Buy the Asus RT-BE96U
The Asus RT-BE96U Wi-Fi 7 router is best suited for users who demand cutting-edge networking performance.
Ideal Buyers
This router is a great fit for:
- Tech enthusiasts upgrading to Wi-Fi 7
- Homes with dozens of connected devices
- Users with multi-gig internet connections
- Gamers and streamers needing low latency
- Smart homes with heavy network traffic
Who Should Skip It
You may want to consider a cheaper router if:
- Your internet speed is below 1Gbps
- Your home network is relatively simple
- You don’t yet have Wi-Fi 7 compatible devices
In those cases, a Wi-Fi 6 or Wi-Fi 6E router may be more cost-effective.
Final Verdict
The Asus RT-BE96U is a powerful next-generation router that delivers the speed and capabilities expected from Wi-Fi 7 technology.
Its strengths include:
- Exceptional wireless performance
- Multi-gig wired connectivity
- Advanced networking features
- Strong security tools
The main downsides are its premium price and large size, but these are common trade-offs in high-end networking hardware.
For users ready to embrace the next generation of wireless connectivity, the Asus RT-BE96U stands out as one of the most capable tri-band Wi-Fi 7 routers currently available.
